OLED дисплей 128*64 (вроде как ssd1306) показывает текст и фигуры через строку (т.е. одну строку закрашивает, следующую нет, после нее закрашивает и так далее.)

Песочница. Раздел для новичков
81

Ну попробуй этот:

/**********************************************************************************************************

  10kHz to 225MHz VFO / RF Generator with Si5351 and Arduino Nano, with Intermediate
  Frequency (IF) offset
  (+ or -), RX/TX Selector for QRP Transceivers, Band Presets
  and Bargraph S-Meter. See the schematics for
  wiring and README.txt for details.
  By J. CesarSound - ver 2.0 - Feb/2021.
***********************************************************************************************************/

//Libraries
#include <Wire.h>                 //IDE Standard
#include <Rotary.h>               //Ben  Buxton https://github.com/brianlow/Rotary
#include <si5351.h>               //Etherkit  https://github.com/etherkit/Si5351Arduino
#include <Adafruit_GFX.h>         //Adafruit  GFX https://github.com/adafruit/Adafruit-GFX-Library
#include <Adafruit_SSD1306.h>     //Adafruit SSD1306 https://github.com/adafruit/Adafruit_SSD1306

//User   preferences
//------------------------------------------------------------------------------------------------------------
#define IF  455              // 455    //Enter your IF frequency, ex: 455 = 455kHz, 10700 = 10.7MHz,
//0 = to direct convert receiver or RF generator, + will add and - will subtract IF   //offfset.
#define BAND_INIT  1         //Enter your initial Band (1-21) at startup,
//ex: 1 = Freq Generator, 2 = 800kHz (MW), 7 = 7.2MHz (40m), 11 = 14.1MHz (20m).
#define XT_CAL_F   33000     //Si5351 calibration factor, adjust to get exatcly 10MHz. Increasing  this value will decreases the frequency and vice versa.
#define S_GAIN     404       //Adjust the sensitivity of Signal Meter A/D input: 101 = 500mv; 202 = 1v;  303 = 1.5v; 404 = 2v; 505 = 2.5v; 1010 = 5v (max).
#define tunestep   A0        //The  pin used by tune step push button.
#define band       A1        //The pin used  //by band selector push button.
#define rx_tx      A2        //The pin used by  RX / TX selector switch, RX = switch open, TX = switch closed to GND. When in TX, the IF value is not considered.
#define adc        A3        //The pin used by  Signal Meter A/D input.
//------------------------------------------------------------------------------------------------------------

Rotary r = Rotary(2, 3);
Adafruit_SSD1306 display = Adafruit_SSD1306(128, 64, &Wire);
Si5351 si5351(0x60);         //Si5351 I2C Address 0x60

unsigned long freq, freqold, fstep;
long interfreq = IF, interfreqold = 0;
long cal = XT_CAL_F;
unsigned int smval;
byte encoder = 1;
byte stp, n = 1;
byte count, x, xo;
bool sts = 0;
unsigned int period = 100;
unsigned long time_now = 0;

ISR(PCINT2_vect) {
  char
  result = r.process();
  if (result == DIR_CW) set_frequency(1);
  else if  (result == DIR_CCW) set_frequency(-1);
}

void set_frequency(short dir)
{
  if (encoder == 1) {          //Up/Down frequency
    if (dir == 1) freq = freq + fstep;
    if (freq >= 225000000) freq = 225000000;
    if (dir == -1) freq = freq - fstep;
    if (fstep == 1000000 && freq <= 1000000) freq = 1000000;
    else if (freq < 4000) freq = 4000;
  }
  if (encoder == 1) {          //Up/Down graph tune pointer
    if (dir == 1) n = n + 1;
    if (n > 42) n = 1;
    if (dir == -1) n = n - 1;
    if (n < 1) n = 42;
  }
}

void statup_text() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setCursor(13, 18);
  display.print("Si5351 VFO/RF GEN");
  display.setCursor(6, 40);
  display.print("JCR RADIO - Ver 2.0");
  display.display();
  delay(2000);
}

void setup() {
  Wire.begin();
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.ssd1306_command(0xA0);
  display.ssd1306_command(0xC0);
  display.setTextColor(WHITE);

  pinMode(2,        INPUT_PULLUP);
  pinMode(3,        INPUT_PULLUP);
  pinMode(tunestep, INPUT_PULLUP);
  pinMode(band,     INPUT_PULLUP);
  pinMode(rx_tx,    INPUT_PULLUP);

  statup_text();  //If you hang on startup, comment

  display.clearDisplay();
  display.display();

  si5351.init(SI5351_CRYSTAL_LOAD_8PF, 0, 0);
  si5351.set_correction(cal, SI5351_PLL_INPUT_XO);
  si5351.drive_strength(SI5351_CLK0,  SI5351_DRIVE_8MA);
  si5351.output_enable(SI5351_CLK0, 1);   //1  - Enable / 0 - Disable CLK
  si5351.output_enable(SI5351_CLK1, 0);
  si5351.output_enable(SI5351_CLK2, 0);

  PCICR |= (1 << PCIE2);
  PCMSK2 |= (1 << PCINT18) | (1 << PCINT19);

  sei();

  count = BAND_INIT;
  bandpresets();
  stp = 4;
  setstep();
}

void
loop() {
  if (freqold != freq) {
    time_now = millis();
    tunegen();
    freqold = freq;
  }

  if (interfreqold != interfreq) {
    time_now = millis();
    tunegen();
    interfreqold = interfreq;
  }

  if
  (xo != x) {
    time_now = millis();
    xo = x;
  }

  if (digitalRead(tunestep) == LOW) {
    time_now = (millis() + 300);
    setstep();
    delay(300);
  }

  if (digitalRead(band) == LOW) {
    time_now = (millis() + 300);
    inc_preset();
    delay(300);
  }

  if (digitalRead(rx_tx) == LOW)
  {
    time_now = (millis() + 300);
    sts = 1;
  } else sts = 0;


  if ((time_now + period) > millis()) {
    displayfreq();
    layout();
  }
  sgnalread();
}

void tunegen() {
  si5351.set_freq((freq + (interfreq * 1000ULL)) * 100ULL, SI5351_CLK0);
}

void displayfreq() {

  unsigned int m = freq / 1000000;
  unsigned int k = (freq % 1000000) / 1000;
  unsigned int h = (freq % 1000) / 1;

  display.clearDisplay();
  display.setTextSize(2);

  char buffer[15] = "";
  if (m < 1) {
    display.setCursor(41, 1); sprintf(buffer, "%003d.%003d", k, h);
  }
  else if (m < 100) {
    display.setCursor(5,  1);
    sprintf(buffer, "%2d.%003d.%003d", m, k, h);
  }
  else if (m >= 100)
  {
    unsigned int h = (freq % 1000) / 10;
    display.setCursor(5, 1); sprintf(buffer,  "%2d.%003d.%02d", m, k, h);
  }
  display.print(buffer);
}

void setstep() {
  switch (stp) {
    case 1: stp = 2; fstep = 1; break;
    case 2: stp = 3; fstep = 10; break;
    case 3: stp = 4; fstep = 100; break;
    case 4: stp = 5; fstep = 1000; break;
    case 5: stp = 6; fstep = 5000;  break;
    case 6: stp = 7; fstep = 8330; break;
    case 7: stp = 8; fstep = 9000; break;
    case 8: stp = 9; fstep = 10000; break;
    case 9: stp = 10; fstep = 12500; break;
    case 10: stp = 11; fstep = 25000; break;
    case 11: stp = 12; fstep = 100000; break;
    case 12: stp = 1; fstep = 1000000; break;
  }
}

void inc_preset() {
  count++;
  if (count > 22) count = 1;
  bandpresets();
  delay(50);
}

void bandpresets() {
  switch (count)  {
    case  1: freq = 100000; tunegen(); break;
    case  2: freq = 153000; break;
    case  3: freq = 522000; break;
    case  4: freq = 1800000; break;
    case  5: freq = 3650000; break;
    case  6: freq = 4985000; break;
    case  7: freq = 6180000; break;
    case  8: freq = 7200000; break;
    case  9: freq = 10000000; break;
    case 10: freq = 11780000; break;
    case 11: freq = 13630000; break;
    case 12: freq = 14100000; break;
    case 13: freq = 15000000; break;
    case 14: freq = 17655000; break;
    case 15: freq = 21525000; break;
    case 16: freq = 27015000; break;
    case 17: freq = 28400000; break;
    case 18: freq = 50000000; break;
    case 19: freq = 87500000; break;
    case 20: freq = 118000000; break;
    case 21: freq = 144000000; break;
    case 22: freq = 220000000; break;

  }
  si5351.pll_reset(SI5351_PLLA);
  stp = 4; setstep();
}

void layout() {
  display.setTextColor(WHITE);
  display.drawLine(0, 20, 127, 20, WHITE);
  display.drawLine(0, 43, 127, 43, WHITE);
  display.drawLine(105, 24, 105, 39, WHITE);
  display.drawLine(87,  24, 87, 39, WHITE);
  display.drawLine(87, 48, 87, 63, WHITE);
  display.drawLine(15, 55, 82, 55, WHITE);
  display.setTextSize(1);
  display.setCursor(50, 23);
  display.print("STEP");
  display.setCursor(50, 33);
  if (stp == 2)   display.print("1Hz"   );
  if (stp == 3)   display.print("10Hz"  );
  if (stp == 4)   display.print("100Hz" );
  if (stp == 5)   display.print("1k"    );
  if (stp == 6)   display.print("5k"    );
  if (stp == 7)   display.print("8.33k" );
  if (stp == 8)   display.print("9k"    );
  if (stp == 9)   display.print("10k"   );
  if (stp == 10)  display.print("12.5k" );
  if (stp == 11)  display.print("25k"   );
  if (stp == 12)  display.print("100k"  );
  if (stp == 1)   display.print("1M"    );

  display.setTextSize(1);
  display.setCursor(92, 48);
  display.print("IF:");
  display.setCursor(92, 57);
  display.print(interfreq);

  display.print("k");
  display.setTextSize(1);
  display.setCursor(110, 23);
  if (freq < 1000000)  display.print("kHz");
  if (freq >= 1000000) display.print("MHz");
  display.setCursor(110, 33);
  if (interfreq == 0)
    display.print("VFO");
  if (interfreq != 0) display.print("L O");
  display.setCursor(91, 28);
  if (!sts) display.print("RX"); if (!sts) interfreq = IF;
  if (sts)  display.print("TX"); if (sts) interfreq = 0;
  bandlist(); drawbargraph();
  display.display();
}

void bandlist() {
  display.setTextSize(2);
  display.setCursor(0, 25);
  if (count == 1)  display.print("GEN");
  if (count == 2)  display.print("LW");
  if (count == 3)  display.print("MW");
  if (count == 4)  display.print("160m");
  if (count == 5)  display.print("80m");
  if (count == 6)  display.print("60m");
  if (count == 7)  display.print("49m");
  if (count == 8)  display.print("40m");
  if (count == 9)  display.print("31m");
  if (count == 10) display.print("25m");
  if (count == 11) display.print("22m");
  if (count == 12) display.print("20m");
  if (count == 13) display.print("19m");
  if (count == 14) display.print("16m");
  if (count == 15) display.print("13m");
  if (count == 16) display.print("11m");
  if (count == 17) display.print("10m");
  if (count == 18) display.print("6m");
  if (count == 19) display.print("WFM");
  if (count == 20) display.print("AIR");
  if (count == 21) display.print("2m");
  if (count == 22) display.print("1m");
  if (count == 1) interfreq = 0;
  else if (!sts) interfreq = IF;
}

void sgnalread() {
  smval = analogRead(adc); x = map(smval, 0, S_GAIN, 1, 14); if (x > 14) x = 14;
}

void drawbargraph() {
  byte y = map(n, 1, 42, 1, 14);
  display.setTextSize(1);

  //Pointer
  display.setCursor(0, 48);
  display.print("TU");
  switch (y) {
    case  1: display.fillRect(15, 48, 2, 6, WHITE); break;
    case  2: display.fillRect(20, 48, 2, 6, WHITE); break;
    case  3: display.fillRect(25, 48, 2, 6, WHITE); break;
    case  4: display.fillRect(30, 48, 2, 6, WHITE); break;
    case  5: display.fillRect(35, 48, 2, 6, WHITE); break;
    case  6: display.fillRect(40, 48, 2, 6, WHITE); break;
    case  7: display.fillRect(45, 48, 2, 6, WHITE); break;
    case  8: display.fillRect(50, 48, 2, 6, WHITE); break;
    case  9: display.fillRect(55, 48, 2, 6, WHITE); break;
    case 10: display.fillRect(60, 48, 2, 6, WHITE); break;
    case 11: display.fillRect(65, 48, 2, 6, WHITE); break;
    case 12: display.fillRect(70, 48, 2, 6, WHITE); break;
    case 13: display.fillRect(75, 48, 2, 6, WHITE); break;
    case 14: display.fillRect(80, 48, 2, 6, WHITE); break;
  }

  //Bargraph
  display.setCursor(0, 57);
  display.print("SM");
  switch (x) {
    case 14: display.fillRect(80, 58, 2, 6, WHITE);
    case 13: display.fillRect(75, 58, 2, 6, WHITE);
    case 12: display.fillRect(70, 58, 2, 6, WHITE);
    case 11: display.fillRect(65, 58, 2, 6, WHITE);
    case 10: display.fillRect(60, 58, 2, 6, WHITE);
    case  9: display.fillRect(55, 58, 2, 6, WHITE);
    case  8: display.fillRect(50, 58, 2, 6, WHITE);
    case  7: display.fillRect(45, 58, 2, 6, WHITE);
    case  6: display.fillRect(40, 58, 2, 6, WHITE);
    case  5: display.fillRect(35, 58, 2, 6, WHITE);
    case  4: display.fillRect(30, 58, 2, 6, WHITE);
    case  3: display.fillRect(25, 58, 2, 6, WHITE);
    case  2: display.fillRect(20, 58, 2, 6, WHITE);
    case  1: display.fillRect(15, 58, 2, 6, WHITE);
  }
}
82

:smiley:

  if (digitalRead(tunestep) == LOW) {
    time_now = (millis() + 300);
    setstep();
    delay(300);
  }

Автору, конечно же виднее, но разве вот это не одно и тоже? )))

  if (digitalRead(tunestep) == LOW) {
    setstep();
    delay(300);
    time_now = millis();
  }

:laughing:

83
  1. Почитайте, что такое PROGMEM.
  2. В соответствии с прочитанным употребите макрос F().
84

Бл… И о “великом переполнении миллис” автор тоже не читал…
Вот, поправил:

/**********************************************************************************************************

  10kHz to 225MHz VFO / RF Generator with Si5351 and Arduino Nano, with Intermediate
  Frequency (IF) offset
  (+ or -), RX/TX Selector for QRP Transceivers, Band Presets
  and Bargraph S-Meter. See the schematics for
  wiring and README.txt for details.
  By J. CesarSound - ver 2.0 - Feb/2021.
***********************************************************************************************************/

//Libraries
#include <Wire.h>                 //IDE Standard
#include <Rotary.h>               //Ben  Buxton https://github.com/brianlow/Rotary
#include <si5351.h>               //Etherkit  https://github.com/etherkit/Si5351Arduino
#include <Adafruit_GFX.h>         //Adafruit  GFX https://github.com/adafruit/Adafruit-GFX-Library
#include <Adafruit_SSD1306.h>     //Adafruit SSD1306 https://github.com/adafruit/Adafruit_SSD1306

//User   preferences
//------------------------------------------------------------------------------------------------------------
#define IF  455              // 455    //Enter your IF frequency, ex: 455 = 455kHz, 10700 = 10.7MHz,
//0 = to direct convert receiver or RF generator, + will add and - will subtract IF   //offfset.
#define BAND_INIT  1         //Enter your initial Band (1-21) at startup,
//ex: 1 = Freq Generator, 2 = 800kHz (MW), 7 = 7.2MHz (40m), 11 = 14.1MHz (20m).
#define XT_CAL_F   33000     //Si5351 calibration factor, adjust to get exatcly 10MHz. Increasing  this value will decreases the frequency and vice versa.
#define S_GAIN     404       //Adjust the sensitivity of Signal Meter A/D input: 101 = 500mv; 202 = 1v;  303 = 1.5v; 404 = 2v; 505 = 2.5v; 1010 = 5v (max).
#define tunestep   A0        //The  pin used by tune step push button.
#define band       A1        //The pin used  //by band selector push button.
#define rx_tx      A2        //The pin used by  RX / TX selector switch, RX = switch open, TX = switch closed to GND. When in TX, the IF value is not considered.
#define adc        A3        //The pin used by  Signal Meter A/D input.
//------------------------------------------------------------------------------------------------------------

Rotary r = Rotary(2, 3);
Adafruit_SSD1306 display = Adafruit_SSD1306(128, 64, &Wire);
Si5351 si5351(0x60);         //Si5351 I2C Address 0x60

unsigned long freq, freqold, fstep;
long interfreq = IF, interfreqold = 0;
long cal = XT_CAL_F;
unsigned int smval;
byte encoder = 1;
byte stp, n = 1;
byte count, x, xo;
bool sts = 0;
unsigned int period = 100;
unsigned long time_now = 0;

ISR(PCINT2_vect) {
  char
  result = r.process();
  if (result == DIR_CW) set_frequency(1);
  else if  (result == DIR_CCW) set_frequency(-1);
}

void set_frequency(short dir) {
  if (encoder == 1) {          //Up/Down frequency
    if (dir == 1) freq = freq + fstep;
    if (freq >= 225000000) freq = 225000000;
    if (dir == -1) freq = freq - fstep;
    if (fstep == 1000000 && freq <= 1000000) freq = 1000000;
    else if (freq < 4000) freq = 4000;
  }
  if (encoder == 1) {          //Up/Down graph tune pointer
    if (dir == 1) n = n + 1;
    if (n > 42) n = 1;
    if (dir == -1) n = n - 1;
    if (n < 1) n = 42;
  }
}

void statup_text() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setCursor(13, 18);
  display.print(F("Si5351 VFO/RF GEN"));
  display.setCursor(6, 40);
  display.print(F("JCR RADIO - Ver 2.0"));
  display.display();
  delay(2000);
}

void setup() {
  Wire.begin();
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.ssd1306_command(0xA0);
  display.ssd1306_command(0xC0);
  display.setTextColor(WHITE);

  pinMode(2,        INPUT_PULLUP);
  pinMode(3,        INPUT_PULLUP);
  pinMode(tunestep, INPUT_PULLUP);
  pinMode(band,     INPUT_PULLUP);
  pinMode(rx_tx,    INPUT_PULLUP);

  statup_text();  //If you hang on startup, comment

  display.clearDisplay();

  si5351.init(SI5351_CRYSTAL_LOAD_8PF, 0, 0);
  si5351.set_correction(cal, SI5351_PLL_INPUT_XO);
  si5351.drive_strength(SI5351_CLK0,  SI5351_DRIVE_8MA);
  si5351.output_enable(SI5351_CLK0, 1);   //1  - Enable / 0 - Disable CLK
  si5351.output_enable(SI5351_CLK1, 0);
  si5351.output_enable(SI5351_CLK2, 0);

  PCICR |= (1 << PCIE2);
  PCMSK2 |= (1 << PCINT18) | (1 << PCINT19);

  sei();

  count = BAND_INIT;
  bandpresets();
  stp = 4;
  setstep();
}

void loop() {
  if (freqold != freq) {
    time_now = millis();
    tunegen();
    freqold = freq;
  }

  if (interfreqold != interfreq) {
    time_now = millis();
    tunegen();
    interfreqold = interfreq;
  }

  if
  (xo != x) {
    time_now = millis();
    xo = x;
  }

  if (digitalRead(tunestep) == LOW) {
    setstep();
    delay(300);
    time_now = millis();
  }

  if (digitalRead(band) == LOW) {
    inc_preset();
    delay(300);
    time_now = millis();
  }

  if (digitalRead(rx_tx) == LOW){
    sts = 1;
    delay(300);
    time_now = millis();
  } else sts = 0;


  if ((millis() - time_now) > period) {
    displayfreq();
    layout();
  }
  sgnalread();
}

void tunegen() {
  si5351.set_freq((freq + (interfreq * 1000ULL)) * 100ULL, SI5351_CLK0);
}

void displayfreq() {

  unsigned int m = freq / 1000000;
  unsigned int k = (freq % 1000000) / 1000;
  unsigned int h = (freq % 1000) / 1;

  display.clearDisplay();
  display.setTextSize(2);

  char buffer[15] = "";
  if (m < 1) {
    display.setCursor(41, 1); sprintf(buffer, "%003d.%003d", k, h);
  }
  else if (m < 100) {
    display.setCursor(5,  1);
    sprintf(buffer, "%2d.%003d.%003d", m, k, h);
  }
  else if (m >= 100)
  {
    unsigned int h = (freq % 1000) / 10;
    display.setCursor(5, 1); sprintf(buffer,  "%2d.%003d.%02d", m, k, h);
  }
  display.print(buffer);
}

void setstep() {
  switch (stp) {
    case 1:  stp = 2;  fstep = 1;       break;
    case 2:  stp = 3;  fstep = 10;      break;
    case 3:  stp = 4;  fstep = 100;     break;
    case 4:  stp = 5;  fstep = 1000;    break;
    case 5:  stp = 6;  fstep = 5000;    break;
    case 6:  stp = 7;  fstep = 8330;    break;
    case 7:  stp = 8;  fstep = 9000;    break;
    case 8:  stp = 9;  fstep = 10000;   break;
    case 9:  stp = 10; fstep = 12500;   break;
    case 10: stp = 11; fstep = 25000;   break;
    case 11: stp = 12; fstep = 100000;  break;
    case 12: stp = 1;  fstep = 1000000; break;
  }
}

void inc_preset() {
  count++;
  if (count > 22) count = 1;
  bandpresets();
  delay(50);
}

void bandpresets() {
  switch (count)  {
    case  1: freq = 100000;
             tunegen();
                                break;
    case  2: freq = 153000;     break;
    case  3: freq = 522000;     break;
    case  4: freq = 1800000;    break;
    case  5: freq = 3650000;    break;
    case  6: freq = 4985000;    break;
    case  7: freq = 6180000;    break;
    case  8: freq = 7200000;    break;
    case  9: freq = 10000000;   break;
    case 10: freq = 11780000;   break;
    case 11: freq = 13630000;   break;
    case 12: freq = 14100000;   break;
    case 13: freq = 15000000;   break;
    case 14: freq = 17655000;   break;
    case 15: freq = 21525000;   break;
    case 16: freq = 27015000;   break;
    case 17: freq = 28400000;   break;
    case 18: freq = 50000000;   break;
    case 19: freq = 87500000;   break;
    case 20: freq = 118000000;  break;
    case 21: freq = 144000000;  break;
    case 22: freq = 220000000;  break;

  }
  si5351.pll_reset(SI5351_PLLA);
  stp = 4; setstep();
}

void layout() {
  display.setTextColor(WHITE);
  display.drawLine(0, 20, 127, 20, WHITE);
  display.drawLine(0, 43, 127, 43, WHITE);
  display.drawLine(105, 24, 105, 39, WHITE);
  display.drawLine(87,  24, 87, 39, WHITE);
  display.drawLine(87, 48, 87, 63, WHITE);
  display.drawLine(15, 55, 82, 55, WHITE);
  display.setTextSize(1);
  display.setCursor(50, 23);
  display.print("STEP");
  display.setCursor(50, 33);
  if (stp == 2)   display.print(F("1Hz"   ));
  if (stp == 3)   display.print(F("10Hz"  ));
  if (stp == 4)   display.print(F("100Hz" ));
  if (stp == 5)   display.print(F("1k"    ));
  if (stp == 6)   display.print(F("5k"    ));
  if (stp == 7)   display.print(F("8.33k" ));
  if (stp == 8)   display.print(F("9k"    ));
  if (stp == 9)   display.print(F("10k"   ));
  if (stp == 10)  display.print(F("12.5k" ));
  if (stp == 11)  display.print(F("25k"   ));
  if (stp == 12)  display.print(F("100k"  ));
  if (stp == 1)   display.print(F("1M"    ));

  display.setTextSize(1);
  display.setCursor(92, 48);
  display.print("IF:");
  display.setCursor(92, 57);
  display.print(interfreq);

  display.print("k");
  display.setTextSize(1);
  display.setCursor(110, 23);
  if (freq < 1000000)  display.print(F("kHz"));
  if (freq >= 1000000) display.print(F("MHz"));
  display.setCursor(110, 33);
  if (interfreq == 0)
    display.print("VFO");
  if (interfreq != 0) display.print(F("L O"));
  display.setCursor(91, 28);
  if (!sts) display.print(F("RX")); if (!sts) interfreq = IF;
  if (sts)  display.print(F("TX")); if (sts) interfreq = 0;
  bandlist(); drawbargraph();
  display.display();
}

void bandlist() {
  display.setTextSize(2);
  display.setCursor(0, 25);
  if (count == 1)  display.print(F("GEN"));
  if (count == 2)  display.print(F("LW"));
  if (count == 3)  display.print(F("MW"));
  if (count == 4)  display.print(F("160m"));
  if (count == 5)  display.print(F("80m"));
  if (count == 6)  display.print(F("60m"));
  if (count == 7)  display.print(F("49m"));
  if (count == 8)  display.print(F("40m"));
  if (count == 9)  display.print(F("31m"));
  if (count == 10) display.print(F("25m"));
  if (count == 11) display.print(F("22m"));
  if (count == 12) display.print(F("20m"));
  if (count == 13) display.print(F("19m"));
  if (count == 14) display.print(F("16m"));
  if (count == 15) display.print(F("13m"));
  if (count == 16) display.print(F("11m"));
  if (count == 17) display.print(F("10m"));
  if (count == 18) display.print(F("6m"));
  if (count == 19) display.print(F("WFM"));
  if (count == 20) display.print(F("AIR"));
  if (count == 21) display.print(F("2m"));
  if (count == 22) display.print(F("1m"));
  if (count == 1) interfreq = 0;
  else if (!sts) interfreq = IF;
}

void sgnalread() {
  smval = analogRead(adc); x = map(smval, 0, S_GAIN, 1, 14); if (x > 14) x = 14;
}

void drawbargraph() {
  byte y = map(n, 1, 42, 1, 14);
  display.setTextSize(1);

  //Pointer
  display.setCursor(0, 48);
  display.print("TU");
  switch (y) {
    case  1: display.fillRect(15, 48, 2, 6, WHITE); break;
    case  2: display.fillRect(20, 48, 2, 6, WHITE); break;
    case  3: display.fillRect(25, 48, 2, 6, WHITE); break;
    case  4: display.fillRect(30, 48, 2, 6, WHITE); break;
    case  5: display.fillRect(35, 48, 2, 6, WHITE); break;
    case  6: display.fillRect(40, 48, 2, 6, WHITE); break;
    case  7: display.fillRect(45, 48, 2, 6, WHITE); break;
    case  8: display.fillRect(50, 48, 2, 6, WHITE); break;
    case  9: display.fillRect(55, 48, 2, 6, WHITE); break;
    case 10: display.fillRect(60, 48, 2, 6, WHITE); break;
    case 11: display.fillRect(65, 48, 2, 6, WHITE); break;
    case 12: display.fillRect(70, 48, 2, 6, WHITE); break;
    case 13: display.fillRect(75, 48, 2, 6, WHITE); break;
    case 14: display.fillRect(80, 48, 2, 6, WHITE); break;
  }

  //Bargraph
  display.setCursor(0, 57);
  display.print("SM");
  switch (x) {
    case 14: display.fillRect(80, 58, 2, 6, WHITE);
    case 13: display.fillRect(75, 58, 2, 6, WHITE);
    case 12: display.fillRect(70, 58, 2, 6, WHITE);
    case 11: display.fillRect(65, 58, 2, 6, WHITE);
    case 10: display.fillRect(60, 58, 2, 6, WHITE);
    case  9: display.fillRect(55, 58, 2, 6, WHITE);
    case  8: display.fillRect(50, 58, 2, 6, WHITE);
    case  7: display.fillRect(45, 58, 2, 6, WHITE);
    case  6: display.fillRect(40, 58, 2, 6, WHITE);
    case  5: display.fillRect(35, 58, 2, 6, WHITE);
    case  4: display.fillRect(30, 58, 2, 6, WHITE);
    case  3: display.fillRect(25, 58, 2, 6, WHITE);
    case  2: display.fillRect(20, 58, 2, 6, WHITE);
    case  1: display.fillRect(15, 58, 2, 6, WHITE);
  }
}
85

Залил подправленный скетч. Стартовый экран высвечивается и стоит как вкопанный :thinking:

86

Почитал. Интересно, но как применить, что и куда вписать? Если знаете, подскажите. :face_with_monocle:

87

Вам даже в скетче вписали - см. последний код от @BOOM

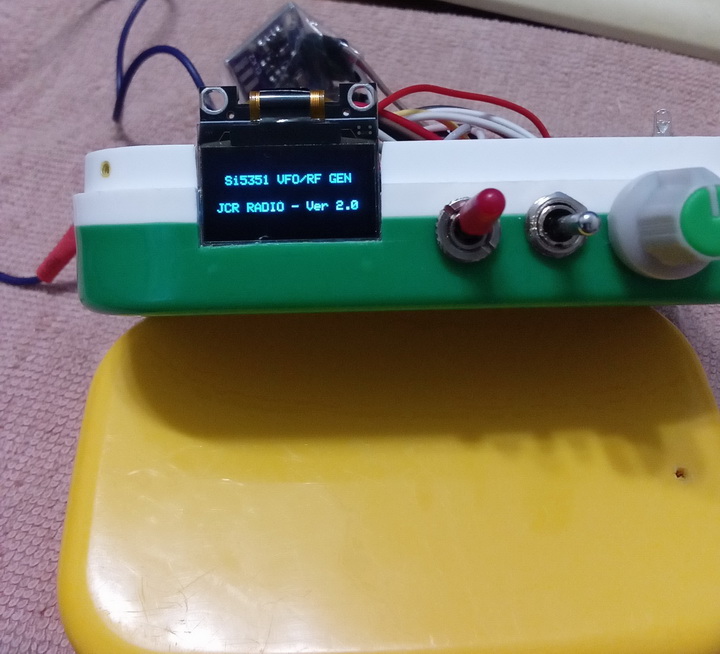

display.print(F("Si5351 VFO/RF GEN"));
1 лайк
88

Читать, пока не поймется :wink:

1 лайк
89

Вот этот?

/**********************************************************************************************************

  10kHz to 225MHz VFO / RF Generator with Si5351 and Arduino Nano, with Intermediate
  Frequency (IF) offset
  (+ or -), RX/TX Selector for QRP Transceivers, Band Presets
  and Bargraph S-Meter. See the schematics for
  wiring and README.txt for details.
  By J. CesarSound - ver 2.0 - Feb/2021.
***********************************************************************************************************/

//Libraries
#include <Wire.h>                 //IDE Standard
#include <Rotary.h>               //Ben  Buxton https://github.com/brianlow/Rotary
#include <si5351.h>               //Etherkit  https://github.com/etherkit/Si5351Arduino
#include <Adafruit_GFX.h>         //Adafruit  GFX https://github.com/adafruit/Adafruit-GFX-Library
#include <Adafruit_SSD1306.h>     //Adafruit SSD1306 https://github.com/adafruit/Adafruit_SSD1306

//User   preferences
//------------------------------------------------------------------------------------------------------------
#define IF  455              // 455    //Enter your IF frequency, ex: 455 = 455kHz, 10700 = 10.7MHz,
//0 = to direct convert receiver or RF generator, + will add and - will subtract IF   //offfset.
#define BAND_INIT  1         //Enter your initial Band (1-21) at startup,
//ex: 1 = Freq Generator, 2 = 800kHz (MW), 7 = 7.2MHz (40m), 11 = 14.1MHz (20m).
#define XT_CAL_F   33000     //Si5351 calibration factor, adjust to get exatcly 10MHz. Increasing  this value will decreases the frequency and vice versa.
#define S_GAIN     404       //Adjust the sensitivity of Signal Meter A/D input: 101 = 500mv; 202 = 1v;  303 = 1.5v; 404 = 2v; 505 = 2.5v; 1010 = 5v (max).
#define tunestep   A0        //The  pin used by tune step push button.
#define band       A1        //The pin used  //by band selector push button.
#define rx_tx      A2        //The pin used by  RX / TX selector switch, RX = switch open, TX = switch closed to GND. When in TX, the IF value is not considered.
#define adc        A3        //The pin used by  Signal Meter A/D input.
//------------------------------------------------------------------------------------------------------------

Rotary r = Rotary(2, 3);
Adafruit_SSD1306 display = Adafruit_SSD1306(128, 64, &Wire);
Si5351 si5351(0x60);         //Si5351 I2C Address 0x60

unsigned long freq, freqold, fstep;
long interfreq = IF, interfreqold = 0;
long cal = XT_CAL_F;
unsigned int smval;
byte encoder = 1;
byte stp, n = 1;
byte count, x, xo;
bool sts = 0;
unsigned int period = 100;
unsigned long time_now = 0;

ISR(PCINT2_vect) {
  char
  result = r.process();
  if (result == DIR_CW) set_frequency(1);
  else if  (result == DIR_CCW) set_frequency(-1);
}

void set_frequency(short dir) {
  if (encoder == 1) {          //Up/Down frequency
    if (dir == 1) freq = freq + fstep;
    if (freq >= 225000000) freq = 225000000;
    if (dir == -1) freq = freq - fstep;
    if (fstep == 1000000 && freq <= 1000000) freq = 1000000;
    else if (freq < 4000) freq = 4000;
  }
  if (encoder == 1) {          //Up/Down graph tune pointer
    if (dir == 1) n = n + 1;
    if (n > 42) n = 1;
    if (dir == -1) n = n - 1;
    if (n < 1) n = 42;
  }
}

void statup_text() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setCursor(13, 18);
  display.print(F("Si5351 VFO/RF GEN"));
  display.setCursor(6, 40);
  display.print(F("JCR RADIO - Ver 2.0"));
  display.display();
  delay(2000);
}

void setup() {
  Wire.begin();
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.ssd1306_command(0xA0);
  display.ssd1306_command(0xC0);
  display.setTextColor(WHITE);

  pinMode(2,        INPUT_PULLUP);
  pinMode(3,        INPUT_PULLUP);
  pinMode(tunestep, INPUT_PULLUP);
  pinMode(band,     INPUT_PULLUP);
  pinMode(rx_tx,    INPUT_PULLUP);

  statup_text();  //If you hang on startup, comment

  display.clearDisplay();

  si5351.init(SI5351_CRYSTAL_LOAD_8PF, 0, 0);
  si5351.set_correction(cal, SI5351_PLL_INPUT_XO);
  si5351.drive_strength(SI5351_CLK0,  SI5351_DRIVE_8MA);
  si5351.output_enable(SI5351_CLK0, 1);   //1  - Enable / 0 - Disable CLK
  si5351.output_enable(SI5351_CLK1, 0);
  si5351.output_enable(SI5351_CLK2, 0);

  PCICR |= (1 << PCIE2);
  PCMSK2 |= (1 << PCINT18) | (1 << PCINT19);

  sei();

  count = BAND_INIT;
  bandpresets();
  stp = 4;
  setstep();
}

void loop() {
  if (freqold != freq) {
    time_now = millis();
    tunegen();
    freqold = freq;
  }

  if (interfreqold != interfreq) {
    time_now = millis();
    tunegen();
    interfreqold = interfreq;
  }

  if
  (xo != x) {
    time_now = millis();
    xo = x;
  }

  if (digitalRead(tunestep) == LOW) {
    setstep();
    delay(300);
    time_now = millis();
  }

  if (digitalRead(band) == LOW) {
    inc_preset();
    delay(300);
    time_now = millis();
  }

  if (digitalRead(rx_tx) == LOW){
    sts = 1;
    delay(300);
    time_now = millis();
  } else sts = 0;


  if ((millis() - time_now) > period) {
    displayfreq();
    layout();
  }
  sgnalread();
}

void tunegen() {
  si5351.set_freq((freq + (interfreq * 1000ULL)) * 100ULL, SI5351_CLK0);
}

void displayfreq() {

  unsigned int m = freq / 1000000;
  unsigned int k = (freq % 1000000) / 1000;
  unsigned int h = (freq % 1000) / 1;

  display.clearDisplay();
  display.setTextSize(2);

  char buffer[15] = "";
  if (m < 1) {
    display.setCursor(41, 1); sprintf(buffer, "%003d.%003d", k, h);
  }
  else if (m < 100) {
    display.setCursor(5,  1);
    sprintf(buffer, "%2d.%003d.%003d", m, k, h);
  }
  else if (m >= 100)
  {
    unsigned int h = (freq % 1000) / 10;
    display.setCursor(5, 1); sprintf(buffer,  "%2d.%003d.%02d", m, k, h);
  }
  display.print(buffer);
}

void setstep() {
  switch (stp) {
    case 1:  stp = 2;  fstep = 1;       break;
    case 2:  stp = 3;  fstep = 10;      break;
    case 3:  stp = 4;  fstep = 100;     break;
    case 4:  stp = 5;  fstep = 1000;    break;
    case 5:  stp = 6;  fstep = 5000;    break;
    case 6:  stp = 7;  fstep = 8330;    break;
    case 7:  stp = 8;  fstep = 9000;    break;
    case 8:  stp = 9;  fstep = 10000;   break;
    case 9:  stp = 10; fstep = 12500;   break;
    case 10: stp = 11; fstep = 25000;   break;
    case 11: stp = 12; fstep = 100000;  break;
    case 12: stp = 1;  fstep = 1000000; break;
  }
}

void inc_preset() {
  count++;
  if (count > 22) count = 1;
  bandpresets();
  delay(50);
}

void bandpresets() {
  switch (count)  {
    case  1: freq = 100000;
             tunegen();
                                break;
    case  2: freq = 153000;     break;
    case  3: freq = 522000;     break;
    case  4: freq = 1800000;    break;
    case  5: freq = 3650000;    break;
    case  6: freq = 4985000;    break;
    case  7: freq = 6180000;    break;
    case  8: freq = 7200000;    break;
    case  9: freq = 10000000;   break;
    case 10: freq = 11780000;   break;
    case 11: freq = 13630000;   break;
    case 12: freq = 14100000;   break;
    case 13: freq = 15000000;   break;
    case 14: freq = 17655000;   break;
    case 15: freq = 21525000;   break;
    case 16: freq = 27015000;   break;
    case 17: freq = 28400000;   break;
    case 18: freq = 50000000;   break;
    case 19: freq = 87500000;   break;
    case 20: freq = 118000000;  break;
    case 21: freq = 144000000;  break;
    case 22: freq = 220000000;  break;

  }
  si5351.pll_reset(SI5351_PLLA);
  stp = 4; setstep();
}

void layout() {
  display.setTextColor(WHITE);
  display.drawLine(0, 20, 127, 20, WHITE);
  display.drawLine(0, 43, 127, 43, WHITE);
  display.drawLine(105, 24, 105, 39, WHITE);
  display.drawLine(87,  24, 87, 39, WHITE);
  display.drawLine(87, 48, 87, 63, WHITE);
  display.drawLine(15, 55, 82, 55, WHITE);
  display.setTextSize(1);
  display.setCursor(50, 23);
  display.print("STEP");
  display.setCursor(50, 33);
  if (stp == 2)   display.print(F("1Hz"   ));
  if (stp == 3)   display.print(F("10Hz"  ));
  if (stp == 4)   display.print(F("100Hz" ));
  if (stp == 5)   display.print(F("1k"    ));
  if (stp == 6)   display.print(F("5k"    ));
  if (stp == 7)   display.print(F("8.33k" ));
  if (stp == 8)   display.print(F("9k"    ));
  if (stp == 9)   display.print(F("10k"   ));
  if (stp == 10)  display.print(F("12.5k" ));
  if (stp == 11)  display.print(F("25k"   ));
  if (stp == 12)  display.print(F("100k"  ));
  if (stp == 1)   display.print(F("1M"    ));

  display.setTextSize(1);
  display.setCursor(92, 48);
  display.print("IF:");
  display.setCursor(92, 57);
  display.print(interfreq);

  display.print("k");
  display.setTextSize(1);
  display.setCursor(110, 23);
  if (freq < 1000000)  display.print(F("kHz"));
  if (freq >= 1000000) display.print(F("MHz"));
  display.setCursor(110, 33);
  if (interfreq == 0)
    display.print("VFO");
  if (interfreq != 0) display.print(F("L O"));
  display.setCursor(91, 28);
  if (!sts) display.print(F("RX")); if (!sts) interfreq = IF;
  if (sts)  display.print(F("TX")); if (sts) interfreq = 0;
  bandlist(); drawbargraph();
  display.display();
}

void bandlist() {
  display.setTextSize(2);
  display.setCursor(0, 25);
  if (count == 1)  display.print(F("GEN"));
  if (count == 2)  display.print(F("LW"));
  if (count == 3)  display.print(F("MW"));
  if (count == 4)  display.print(F("160m"));
  if (count == 5)  display.print(F("80m"));
  if (count == 6)  display.print(F("60m"));
  if (count == 7)  display.print(F("49m"));
  if (count == 8)  display.print(F("40m"));
  if (count == 9)  display.print(F("31m"));
  if (count == 10) display.print(F("25m"));
  if (count == 11) display.print(F("22m"));
  if (count == 12) display.print(F("20m"));
  if (count == 13) display.print(F("19m"));
  if (count == 14) display.print(F("16m"));
  if (count == 15) display.print(F("13m"));
  if (count == 16) display.print(F("11m"));
  if (count == 17) display.print(F("10m"));
  if (count == 18) display.print(F("6m"));
  if (count == 19) display.print(F("WFM"));
  if (count == 20) display.print(F("AIR"));
  if (count == 21) display.print(F("2m"));
  if (count == 22) display.print(F("1m"));
  if (count == 1) interfreq = 0;
  else if (!sts) interfreq = IF;
}

void sgnalread() {
  smval = analogRead(adc); x = map(smval, 0, S_GAIN, 1, 14); if (x > 14) x = 14;
}

void drawbargraph() {
  byte y = map(n, 1, 42, 1, 14);
  display.setTextSize(1);

  //Pointer
  display.setCursor(0, 48);
  display.print("TU");
  switch (y) {
    case  1: display.fillRect(15, 48, 2, 6, WHITE); break;
    case  2: display.fillRect(20, 48, 2, 6, WHITE); break;
    case  3: display.fillRect(25, 48, 2, 6, WHITE); break;
    case  4: display.fillRect(30, 48, 2, 6, WHITE); break;
    case  5: display.fillRect(35, 48, 2, 6, WHITE); break;
    case  6: display.fillRect(40, 48, 2, 6, WHITE); break;
    case  7: display.fillRect(45, 48, 2, 6, WHITE); break;
    case  8: display.fillRect(50, 48, 2, 6, WHITE); break;
    case  9: display.fillRect(55, 48, 2, 6, WHITE); break;
    case 10: display.fillRect(60, 48, 2, 6, WHITE); break;
    case 11: display.fillRect(65, 48, 2, 6, WHITE); break;
    case 12: display.fillRect(70, 48, 2, 6, WHITE); break;
    case 13: display.fillRect(75, 48, 2, 6, WHITE); break;
    case 14: display.fillRect(80, 48, 2, 6, WHITE); break;
  }

  //Bargraph
  display.setCursor(0, 57);
  display.print("SM");
  switch (x) {
    case 14: display.fillRect(80, 58, 2, 6, WHITE);
    case 13: display.fillRect(75, 58, 2, 6, WHITE);
    case 12: display.fillRect(70, 58, 2, 6, WHITE);
    case 11: display.fillRect(65, 58, 2, 6, WHITE);
    case 10: display.fillRect(60, 58, 2, 6, WHITE);
    case  9: display.fillRect(55, 58, 2, 6, WHITE);
    case  8: display.fillRect(50, 58, 2, 6, WHITE);
    case  7: display.fillRect(45, 58, 2, 6, WHITE);
    case  6: display.fillRect(40, 58, 2, 6, WHITE);
    case  5: display.fillRect(35, 58, 2, 6, WHITE);
    case  4: display.fillRect(30, 58, 2, 6, WHITE);
    case  3: display.fillRect(25, 58, 2, 6, WHITE);
    case  2: display.fillRect(20, 58, 2, 6, WHITE);
    case  1: display.fillRect(15, 58, 2, 6, WHITE);
  }
}

Не верю.

90

С подправленным скетчем, картина именно такая. Заставка и всё :thinking:

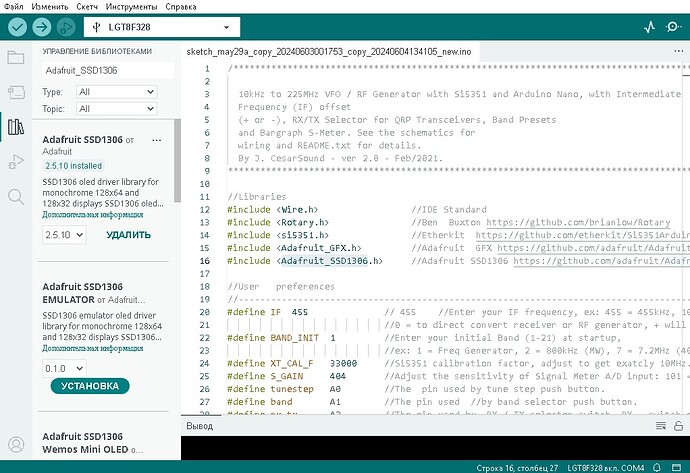

Scr_18
Scr_18720×654 119 KB

91

Понимание может и есть, нет опыта применения. Это важно.

92

Нет понимания. Иначе прочитанное, да в купе с приведенными там же примерами, вопросов бы не вызвало :wink:

93

Петрович сказал что два дня до полнолуния и всякая “ерунда” может твориться.
Может просто подождать? :smiley:

94

Покажи вывод ИДЕ (“Скетч использует столько-то из стольки то и тпт”) и что за плату выбираешь при компиляции (какая плата физически установлена?)?

95

В программировании, много разного рода факторов, которые влияют на конечный результат. По этому и существует “ОТЛАДКА”. А в целом, если хочется реально помочь, сваяй несколько строк, как альтернативу, для заставки и укажи, куда её вписать правильно, что бы она работала правильно. :slightly_smiling_face:

Вот СкринШоты, установленных, обновленных библиотек.

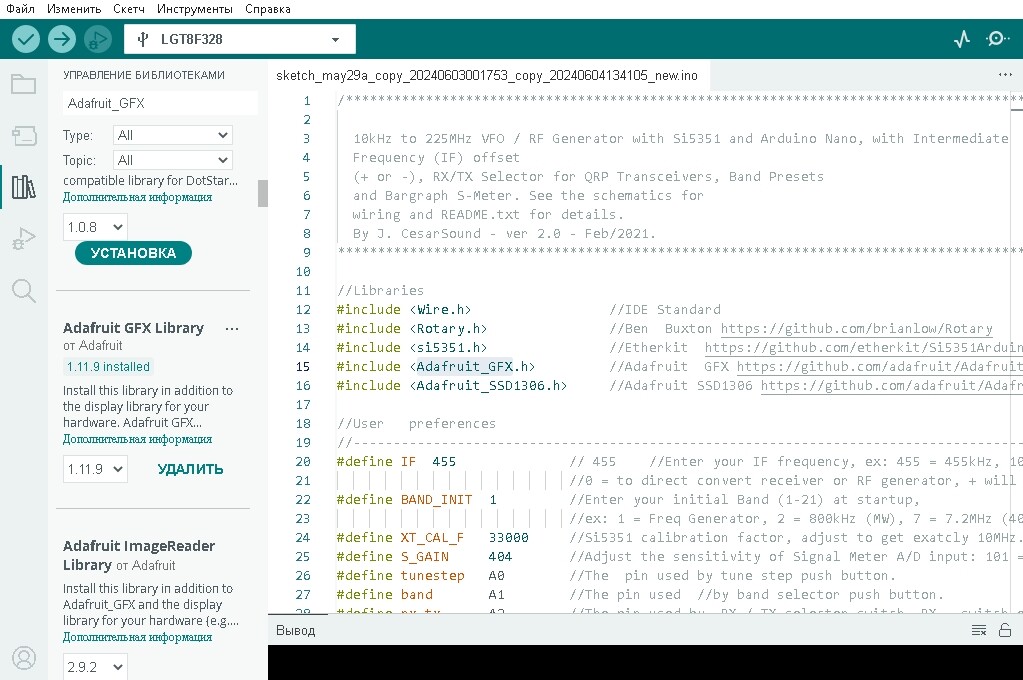

Scr_19
Scr_191023×680 158 KB

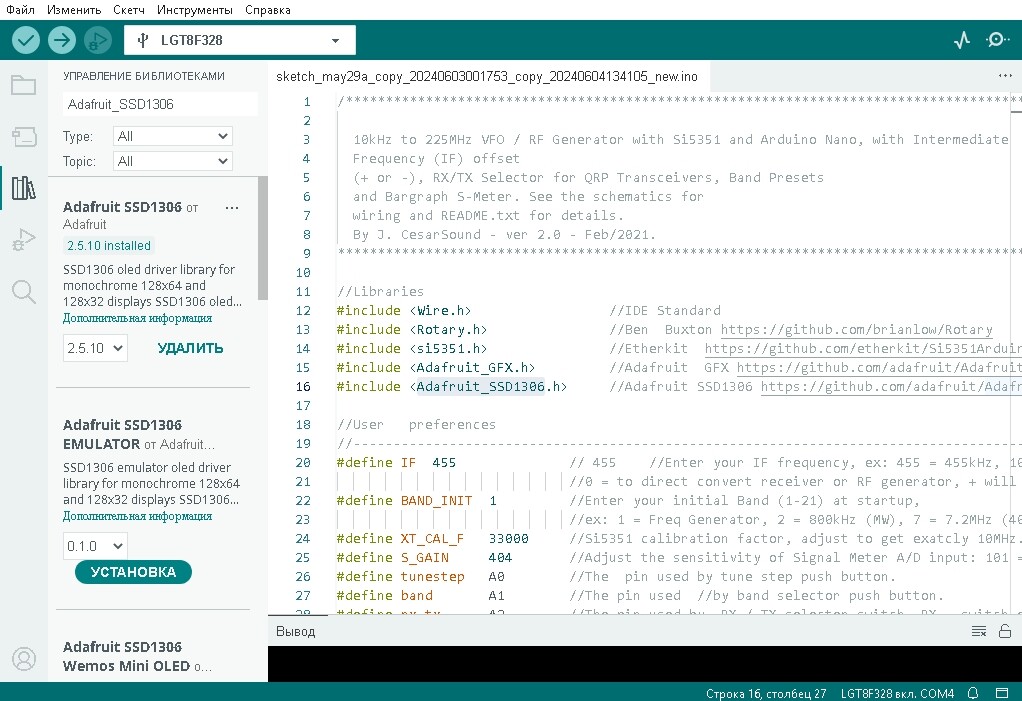

Scr_20
Scr_201022×701 159 KB

Переустановка библиотек, на более ранние, включая “первые” релизы библиотек, результата не дал. Всё так же. Заставка выводится и всё.

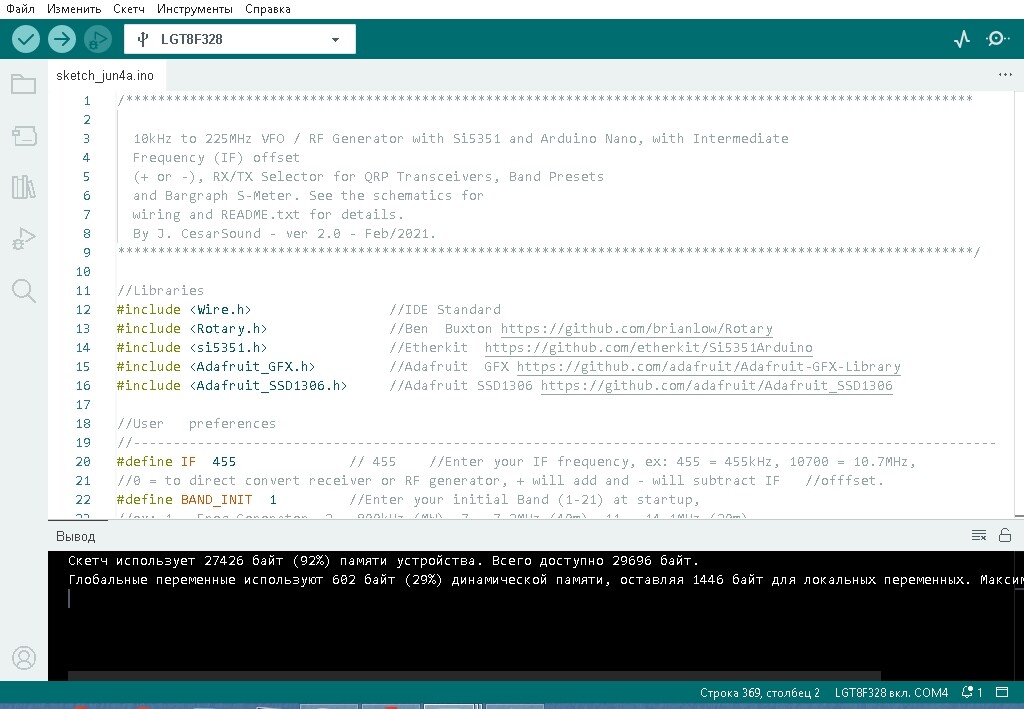

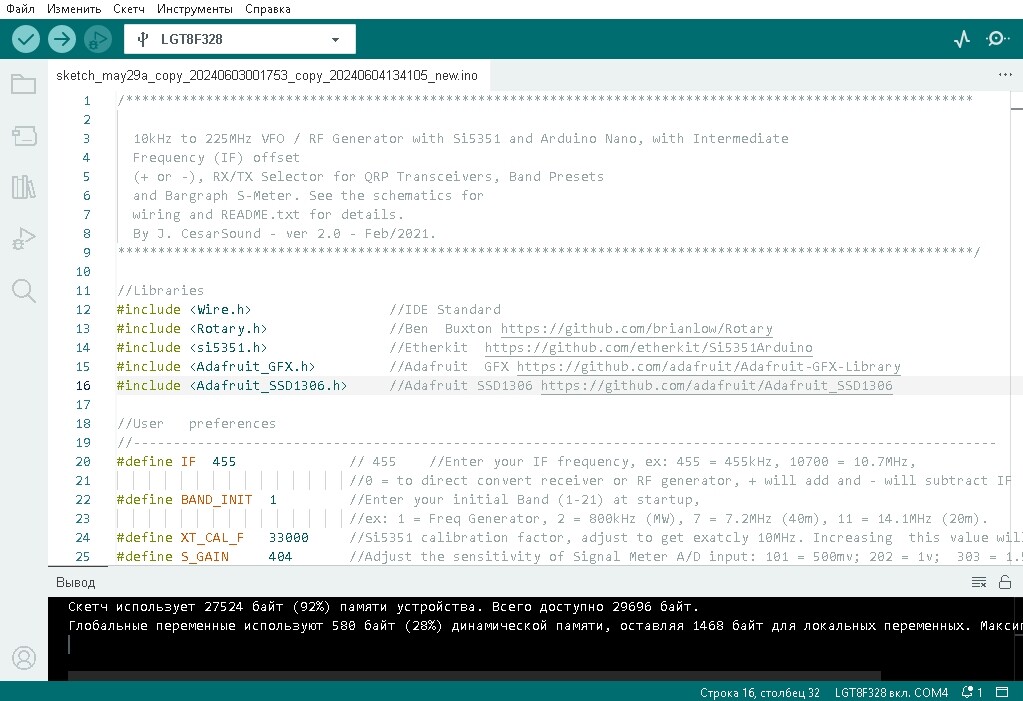

Информация об успешной компиляции (это “базовый”, рабочий скетч, которым я использую).

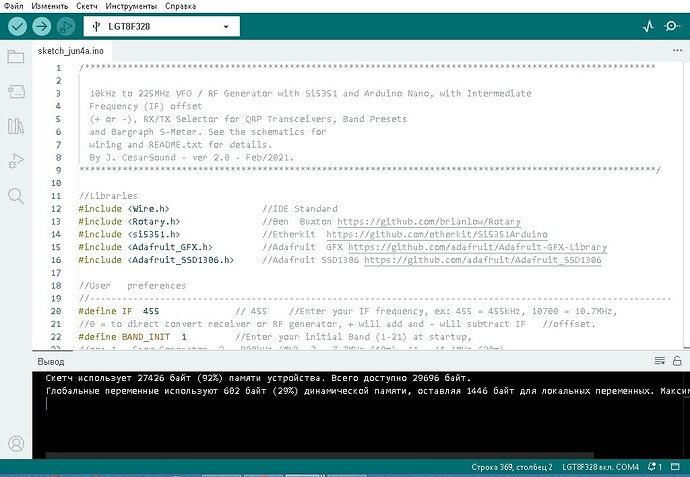

Scr_22
Scr_221023×701 162 KB

В информационном поле отображается следующая информация (полностью не вошла в скриншот).
“Скетч использует 27524 байт (92%) памяти устройства. Всего доступно 29696 байт.
Глобальные переменные используют 580 байт (28%) динамической памяти, оставляя 1468 байт для локальных переменных. Максимум: 2048 байт.”
Это ваш, подправленный(!) скетч. То же компилируется и заливается.
Scr_23
Scr_231024×709 139 KB

Выводная информация.
“Скетч использует 27426 байт (92%) памяти устройства. Всего доступно 29696 байт.
Глобальные переменные используют 602 байт (29%) динамической памяти, оставляя 1446 байт для локальных переменных. Максимум: 2048 байт.”
Автор же не зря вписал комментарий в строку
“statup_text(); //If you hang on startup, comment”
Значит столкнулся, на этапе отладки с такой проблемой и не стал её устранять, а просто предупредил, что делать, если произойдёт зависание. Может исключить авторские строки заставки и организовать их как то иначе, всё равно скетч уже частично переработан? Но как это сделать правильно? :thinking:

96

Уже бежать исполнять?

2 лайка
97

А сможешь? :wink:

98

Конечно. А захочу? Сомневаюсь :wink:

99

Вот и я сомневаюсь, что сможешь :slightly_smiling_face:

100

аминь
