У меня есть raspbery pi pico (китайский клон с 3 кнопками и цветным светодиодом). Я использую Thony и microphyton. Дисплей st7735 80x160. Как вывести на него текст или хоть что нибудь? Chatgpt помог мне помигать цветным светодиодом, вывести температуру в консоль, но с дисплеем ничего не получается. Прошу помогите.
Забиваете в гугль название контроллера и тип дисплея и ищите.
Скорее всего точно такого как надо скетче не будет - значит придется комбинировать з двух-трех, а может и пяти.
Понятно, что для этого надо что-то понимать в программировании. Причем самому, а не через ЧатГПТ
from ST7735 import TFT
from sysfont import sysfont
from machine import SPI,Pin
import time
import math
spi = SPI(2, baudrate=20000000, polarity=0, phase=0, sck=Pin(14), mosi=Pin(13), miso=Pin(12))
tft=TFT(spi,16,17,18)
tft.initr()
tft.rgb(True)
def testlines(color):
tft.fill(TFT.BLACK)
for x in range(0, tft.size()[0], 6):
tft.line((0,0),(x, tft.size()[1] - 1), color)
for y in range(0, tft.size()[1], 6):
tft.line((0,0),(tft.size()[0] - 1, y), color)
tft.fill(TFT.BLACK)
for x in range(0, tft.size()[0], 6):
tft.line((tft.size()[0] - 1, 0), (x, tft.size()[1] - 1), color)
for y in range(0, tft.size()[1], 6):
tft.line((tft.size()[0] - 1, 0), (0, y), color)
tft.fill(TFT.BLACK)
for x in range(0, tft.size()[0], 6):
tft.line((0, tft.size()[1] - 1), (x, 0), color)
for y in range(0, tft.size()[1], 6):
tft.line((0, tft.size()[1] - 1), (tft.size()[0] - 1,y), color)
tft.fill(TFT.BLACK)
for x in range(0, tft.size()[0], 6):
tft.line((tft.size()[0] - 1, tft.size()[1] - 1), (x, 0), color)
for y in range(0, tft.size()[1], 6):
tft.line((tft.size()[0] - 1, tft.size()[1] - 1), (0, y), color)
def testfastlines(color1, color2):
tft.fill(TFT.BLACK)
for y in range(0, tft.size()[1], 5):
tft.hline((0,y), tft.size()[0], color1)
for x in range(0, tft.size()[0], 5):
tft.vline((x,0), tft.size()[1], color2)
def testdrawrects(color):
tft.fill(TFT.BLACK);
for x in range(0,tft.size()[0],6):
tft.rect((tft.size()[0]//2 - x//2, tft.size()[1]//2 - x/2), (x, x), color)
def testfillrects(color1, color2):
tft.fill(TFT.BLACK);
for x in range(tft.size()[0],0,-6):
tft.fillrect((tft.size()[0]//2 - x//2, tft.size()[1]//2 - x/2), (x, x), color1)
tft.rect((tft.size()[0]//2 - x//2, tft.size()[1]//2 - x/2), (x, x), color2)
def testfillcircles(radius, color):
for x in range(radius, tft.size()[0], radius * 2):
for y in range(radius, tft.size()[1], radius * 2):
tft.fillcircle((x, y), radius, color)
def testdrawcircles(radius, color):
for x in range(0, tft.size()[0] + radius, radius * 2):
for y in range(0, tft.size()[1] + radius, radius * 2):
tft.circle((x, y), radius, color)
def testtriangles():
tft.fill(TFT.BLACK);
color = 0xF800
w = tft.size()[0] // 2
x = tft.size()[1] - 1
y = 0
z = tft.size()[0]
for t in range(0, 15):
tft.line((w, y), (y, x), color)
tft.line((y, x), (z, x), color)
tft.line((z, x), (w, y), color)
x -= 4
y += 4
z -= 4
color += 100
def testroundrects():
tft.fill(TFT.BLACK);
color = 100
for t in range(5):
x = 0
y = 0
w = tft.size()[0] - 2
h = tft.size()[1] - 2
for i in range(17):
tft.rect((x, y), (w, h), color)
x += 2
y += 3
w -= 4
h -= 6
color += 1100
color += 100
def tftprinttest():
tft.fill(TFT.BLACK);
v = 30
tft.text((0, v), "Hello World!", TFT.RED, sysfont, 1, nowrap=True)
v += sysfont["Height"]
tft.text((0, v), "Hello World!", TFT.YELLOW, sysfont, 2, nowrap=True)
v += sysfont["Height"] * 2
tft.text((0, v), "Hello World!", TFT.GREEN, sysfont, 3, nowrap=True)
v += sysfont["Height"] * 3
tft.text((0, v), str(1234.567), TFT.BLUE, sysfont, 4, nowrap=True)
time.sleep_ms(1500)
tft.fill(TFT.BLACK);
v = 0
tft.text((0, v), "Hello World!", TFT.RED, sysfont)
v += sysfont["Height"]
tft.text((0, v), str(math.pi), TFT.GREEN, sysfont)
v += sysfont["Height"]
tft.text((0, v), " Want pi?", TFT.GREEN, sysfont)
v += sysfont["Height"] * 2
tft.text((0, v), hex(8675309), TFT.GREEN, sysfont)
v += sysfont["Height"]
tft.text((0, v), " Print HEX!", TFT.GREEN, sysfont)
v += sysfont["Height"] * 2
tft.text((0, v), "Sketch has been", TFT.WHITE, sysfont)
v += sysfont["Height"]
tft.text((0, v), "running for: ", TFT.WHITE, sysfont)
v += sysfont["Height"]
tft.text((0, v), str(time.ticks_ms() / 1000), TFT.PURPLE, sysfont)
v += sysfont["Height"]
tft.text((0, v), " seconds.", TFT.WHITE, sysfont)
def test_main():
tft.fill(TFT.BLACK)
tft.text((0, 0), "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur adipiscing ante sed nibh tincidunt feugiat. Maecenas enim massa, fringilla sed malesuada et, malesuada sit amet turpis. Sed porttitor neque ut ante pretium vitae malesuada nunc bibendum. Nullam aliquet ultrices massa eu hendrerit. Ut sed nisi lorem. In vestibulum purus a tortor imperdiet posuere. ", TFT.WHITE, sysfont, 1)
time.sleep_ms(1000)
tftprinttest()
time.sleep_ms(4000)
testlines(TFT.YELLOW)
time.sleep_ms(500)
testfastlines(TFT.RED, TFT.BLUE)
time.sleep_ms(500)
testdrawrects(TFT.GREEN)
time.sleep_ms(500)
testfillrects(TFT.YELLOW, TFT.PURPLE)
time.sleep_ms(500)
tft.fill(TFT.BLACK)
testfillcircles(10, TFT.BLUE)
testdrawcircles(10, TFT.WHITE)
time.sleep_ms(500)
testroundrects()
time.sleep_ms(500)
testtriangles()
time.sleep_ms(500)
test_main()
#driver for Sainsmart 1.8" TFT display ST7735
#Translated by Guy Carver from the ST7735 sample code.
#Modirfied for micropython-esp32 by boochow
import machine
import time
from math import sqrt
#TFTRotations and TFTRGB are bits to set
# on MADCTL to control display rotation/color layout
#Looking at display with pins on top.
#00 = upper left printing right
#10 = does nothing (MADCTL_ML)
#20 = upper left printing down (backwards) (Vertical flip)
#40 = upper right printing left (backwards) (X Flip)
#80 = lower left printing right (backwards) (Y Flip)
#04 = (MADCTL_MH)
#60 = 90 right rotation
#C0 = 180 right rotation
#A0 = 270 right rotation
TFTRotations = [0x00, 0x60, 0xC0, 0xA0]
TFTBGR = 0x08 #When set color is bgr else rgb.
TFTRGB = 0x00
#@micropython.native
def clamp( aValue, aMin, aMax ) :
return max(aMin, min(aMax, aValue))
#@micropython.native
def TFTColor( aR, aG, aB ) :
'''Create a 16 bit rgb value from the given R,G,B from 0-255.
This assumes rgb 565 layout and will be incorrect for bgr.'''
return ((aR & 0xF8) << 8) | ((aG & 0xFC) << 3) | (aB >> 3)
ScreenSize = (128, 160)
class TFT(object) :
"""Sainsmart TFT 7735 display driver."""
NOP = 0x0
SWRESET = 0x01
RDDID = 0x04
RDDST = 0x09
SLPIN = 0x10
SLPOUT = 0x11
PTLON = 0x12
NORON = 0x13
INVOFF = 0x20
INVON = 0x21
DISPOFF = 0x28
DISPON = 0x29
CASET = 0x2A
RASET = 0x2B
RAMWR = 0x2C
RAMRD = 0x2E
VSCRDEF = 0x33
VSCSAD = 0x37
COLMOD = 0x3A
MADCTL = 0x36
FRMCTR1 = 0xB1
FRMCTR2 = 0xB2
FRMCTR3 = 0xB3
INVCTR = 0xB4
DISSET5 = 0xB6
PWCTR1 = 0xC0
PWCTR2 = 0xC1
PWCTR3 = 0xC2
PWCTR4 = 0xC3
PWCTR5 = 0xC4
VMCTR1 = 0xC5
RDID1 = 0xDA
RDID2 = 0xDB
RDID3 = 0xDC
RDID4 = 0xDD
PWCTR6 = 0xFC
GMCTRP1 = 0xE0
GMCTRN1 = 0xE1
BLACK = 0
RED = TFTColor(0xFF, 0x00, 0x00)
MAROON = TFTColor(0x80, 0x00, 0x00)
GREEN = TFTColor(0x00, 0xFF, 0x00)
FOREST = TFTColor(0x00, 0x80, 0x80)
BLUE = TFTColor(0x00, 0x00, 0xFF)
NAVY = TFTColor(0x00, 0x00, 0x80)
CYAN = TFTColor(0x00, 0xFF, 0xFF)
YELLOW = TFTColor(0xFF, 0xFF, 0x00)
PURPLE = TFTColor(0xFF, 0x00, 0xFF)
WHITE = TFTColor(0xFF, 0xFF, 0xFF)
GRAY = TFTColor(0x80, 0x80, 0x80)
@staticmethod
def color( aR, aG, aB ) :
'''Create a 565 rgb TFTColor value'''
return TFTColor(aR, aG, aB)
def __init__( self, spi, aDC, aReset, aCS) :
"""aLoc SPI pin location is either 1 for 'X' or 2 for 'Y'.
aDC is the DC pin and aReset is the reset pin."""
self._size = ScreenSize
self._offset = bytearray([0,0])
self.rotate = 0 #Vertical with top toward pins.
self._rgb = True #color order of rgb.
self.tfa = 0 #top fixed area
self.bfa = 0 #bottom fixed area
self.dc = machine.Pin(aDC, machine.Pin.OUT, machine.Pin.PULL_DOWN)
self.reset = machine.Pin(aReset, machine.Pin.OUT, machine.Pin.PULL_DOWN)
self.cs = machine.Pin(aCS, machine.Pin.OUT, machine.Pin.PULL_DOWN)
self.cs(1)
self.spi = spi
self.colorData = bytearray(2)
self.windowLocData = bytearray(4)
def size( self ) :
return self._size
# @micropython.native
def on( self, aTF = True ) :
'''Turn display on or off.'''
self._writecommand(TFT.DISPON if aTF else TFT.DISPOFF)
# @micropython.native
def invertcolor( self, aBool ) :
'''Invert the color data IE: Black = White.'''
self._writecommand(TFT.INVON if aBool else TFT.INVOFF)
# @micropython.native
def rgb( self, aTF = True ) :
'''True = rgb else bgr'''
self._rgb = aTF
self._setMADCTL()
# @micropython.native
def rotation( self, aRot ) :
'''0 - 3. Starts vertical with top toward pins and rotates 90 deg
clockwise each step.'''
if (0 <= aRot < 4):
rotchange = self.rotate ^ aRot
self.rotate = aRot
#If switching from vertical to horizontal swap x,y
# (indicated by bit 0 changing).
if (rotchange & 1):
self._size =(self._size[1], self._size[0])
self._setMADCTL()
# @micropython.native
def pixel( self, aPos, aColor ) :
'''Draw a pixel at the given position'''
if 0 <= aPos[0] < self._size[0] and 0 <= aPos[1] < self._size[1]:
self._setwindowpoint(aPos)
self._pushcolor(aColor)
# @micropython.native
def text( self, aPos, aString, aColor, aFont, aSize = 1, nowrap = False ) :
'''Draw a text at the given position. If the string reaches the end of the
display it is wrapped to aPos[0] on the next line. aSize may be an integer
which will size the font uniformly on w,h or a or any type that may be
indexed with [0] or [1].'''
if aFont == None:
return
#Make a size either from single value or 2 elements.
if (type(aSize) == int) or (type(aSize) == float):
wh = (aSize, aSize)
else:
wh = aSize
px, py = aPos
width = wh[0] * aFont["Width"] + 1
for c in aString:
self.char((px, py), c, aColor, aFont, wh)
px += width
#We check > rather than >= to let the right (blank) edge of the
# character print off the right of the screen.
if px + width > self._size[0]:
if nowrap:
break
else:
py += aFont["Height"] * wh[1] + 1
px = aPos[0]
# @micropython.native
def char( self, aPos, aChar, aColor, aFont, aSizes ) :
'''Draw a character at the given position using the given font and color.
aSizes is a tuple with x, y as integer scales indicating the
# of pixels to draw for each pixel in the character.'''
if aFont == None:
return
startchar = aFont['Start']
endchar = aFont['End']
ci = ord(aChar)
if (startchar <= ci <= endchar):
fontw = aFont['Width']
fonth = aFont['Height']
ci = (ci - startchar) * fontw
charA = aFont["Data"][ci:ci + fontw]
px = aPos[0]
if aSizes[0] <= 1 and aSizes[1] <= 1 :
buf = bytearray(2 * fonth * fontw)
for q in range(fontw) :
c = charA[q]
for r in range(fonth) :
if c & 0x01 :
pos = 2 * (r * fontw + q)
buf[pos] = aColor >> 8
buf[pos + 1] = aColor & 0xff
c >>= 1
self.image(aPos[0], aPos[1], aPos[0] + fontw - 1, aPos[1] + fonth - 1, buf)
else:
for c in charA :
py = aPos[1]
for r in range(fonth) :
if c & 0x01 :
self.fillrect((px, py), aSizes, aColor)
py += aSizes[1]
c >>= 1
px += aSizes[0]
# @micropython.native
def line( self, aStart, aEnd, aColor ) :
'''Draws a line from aStart to aEnd in the given color. Vertical or horizontal
lines are forwarded to vline and hline.'''
if aStart[0] == aEnd[0]:
#Make sure we use the smallest y.
pnt = aEnd if (aEnd[1] < aStart[1]) else aStart
self.vline(pnt, abs(aEnd[1] - aStart[1]) + 1, aColor)
elif aStart[1] == aEnd[1]:
#Make sure we use the smallest x.
pnt = aEnd if aEnd[0] < aStart[0] else aStart
self.hline(pnt, abs(aEnd[0] - aStart[0]) + 1, aColor)
else:
px, py = aStart
ex, ey = aEnd
dx = ex - px
dy = ey - py
inx = 1 if dx > 0 else -1
iny = 1 if dy > 0 else -1
dx = abs(dx)
dy = abs(dy)
if (dx >= dy):
dy <<= 1
e = dy - dx
dx <<= 1
while (px != ex):
self.pixel((px, py), aColor)
if (e >= 0):
py += iny
e -= dx
e += dy
px += inx
else:
dx <<= 1
e = dx - dy
dy <<= 1
while (py != ey):
self.pixel((px, py), aColor)
if (e >= 0):
px += inx
e -= dy
e += dx
py += iny
# @micropython.native
def vline( self, aStart, aLen, aColor ) :
'''Draw a vertical line from aStart for aLen. aLen may be negative.'''
start = (clamp(aStart[0], 0, self._size[0]), clamp(aStart[1], 0, self._size[1]))
stop = (start[0], clamp(start[1] + aLen, 0, self._size[1]))
#Make sure smallest y 1st.
if (stop[1] < start[1]):
start, stop = stop, start
self._setwindowloc(start, stop)
self._setColor(aColor)
self._draw(aLen)
# @micropython.native
def hline( self, aStart, aLen, aColor ) :
'''Draw a horizontal line from aStart for aLen. aLen may be negative.'''
start = (clamp(aStart[0], 0, self._size[0]), clamp(aStart[1], 0, self._size[1]))
stop = (clamp(start[0] + aLen, 0, self._size[0]), start[1])
#Make sure smallest x 1st.
if (stop[0] < start[0]):
start, stop = stop, start
self._setwindowloc(start, stop)
self._setColor(aColor)
self._draw(aLen)
# @micropython.native
def rect( self, aStart, aSize, aColor ) :
'''Draw a hollow rectangle. aStart is the smallest coordinate corner
and aSize is a tuple indicating width, height.'''
self.hline(aStart, aSize[0], aColor)
self.hline((aStart[0], aStart[1] + aSize[1] - 1), aSize[0], aColor)
self.vline(aStart, aSize[1], aColor)
self.vline((aStart[0] + aSize[0] - 1, aStart[1]), aSize[1], aColor)
# @micropython.native
def fillrect( self, aStart, aSize, aColor ) :
'''Draw a filled rectangle. aStart is the smallest coordinate corner
and aSize is a tuple indicating width, height.'''
start = (clamp(aStart[0], 0, self._size[0]), clamp(aStart[1], 0, self._size[1]))
end = (clamp(start[0] + aSize[0] - 1, 0, self._size[0]), clamp(start[1] + aSize[1] - 1, 0, self._size[1]))
if (end[0] < start[0]):
tmp = end[0]
end = (start[0], end[1])
start = (tmp, start[1])
if (end[1] < start[1]):
tmp = end[1]
end = (end[0], start[1])
start = (start[0], tmp)
self._setwindowloc(start, end)
numPixels = (end[0] - start[0] + 1) * (end[1] - start[1] + 1)
self._setColor(aColor)
self._draw(numPixels)
# @micropython.native
def circle( self, aPos, aRadius, aColor ) :
'''Draw a hollow circle with the given radius and color with aPos as center.'''
self.colorData[0] = aColor >> 8
self.colorData[1] = aColor
xend = int(0.7071 * aRadius) + 1
rsq = aRadius * aRadius
for x in range(xend) :
y = int(sqrt(rsq - x * x))
xp = aPos[0] + x
yp = aPos[1] + y
xn = aPos[0] - x
yn = aPos[1] - y
xyp = aPos[0] + y
yxp = aPos[1] + x
xyn = aPos[0] - y
yxn = aPos[1] - x
self._setwindowpoint((xp, yp))
self._writedata(self.colorData)
self._setwindowpoint((xp, yn))
self._writedata(self.colorData)
self._setwindowpoint((xn, yp))
self._writedata(self.colorData)
self._setwindowpoint((xn, yn))
self._writedata(self.colorData)
self._setwindowpoint((xyp, yxp))
self._writedata(self.colorData)
self._setwindowpoint((xyp, yxn))
self._writedata(self.colorData)
self._setwindowpoint((xyn, yxp))
self._writedata(self.colorData)
self._setwindowpoint((xyn, yxn))
self._writedata(self.colorData)
# @micropython.native
def fillcircle( self, aPos, aRadius, aColor ) :
'''Draw a filled circle with given radius and color with aPos as center'''
rsq = aRadius * aRadius
for x in range(aRadius) :
y = int(sqrt(rsq - x * x))
y0 = aPos[1] - y
ey = y0 + y * 2
y0 = clamp(y0, 0, self._size[1])
ln = abs(ey - y0) + 1;
self.vline((aPos[0] + x, y0), ln, aColor)
self.vline((aPos[0] - x, y0), ln, aColor)
def fill( self, aColor = BLACK ) :
'''Fill screen with the given color.'''
self.fillrect((0, 0), self._size, aColor)
def image( self, x0, y0, x1, y1, data ) :
self._setwindowloc((x0, y0), (x1, y1))
self._writedata(data)
def setvscroll(self, tfa, bfa) :
''' set vertical scroll area '''
self._writecommand(TFT.VSCRDEF)
data2 = bytearray([0, tfa])
self._writedata(data2)
data2[1] = 162 - tfa - bfa
self._writedata(data2)
data2[1] = bfa
self._writedata(data2)
self.tfa = tfa
self.bfa = bfa
def vscroll(self, value) :
a = value + self.tfa
if (a + self.bfa > 162) :
a = 162 - self.bfa
self._vscrolladdr(a)
def _vscrolladdr(self, addr) :
self._writecommand(TFT.VSCSAD)
data2 = bytearray([addr >> 8, addr & 0xff])
self._writedata(data2)
# @micropython.native
def _setColor( self, aColor ) :
self.colorData[0] = aColor >> 8
self.colorData[1] = aColor
self.buf = bytes(self.colorData) * 32
# @micropython.native
def _draw( self, aPixels ) :
'''Send given color to the device aPixels times.'''
self.dc(1)
self.cs(0)
for i in range(aPixels//32):
self.spi.write(self.buf)
rest = (int(aPixels) % 32)
if rest > 0:
buf2 = bytes(self.colorData) * rest
self.spi.write(buf2)
self.cs(1)
# @micropython.native
def _setwindowpoint( self, aPos ) :
'''Set a single point for drawing a color to.'''
x = self._offset[0] + int(aPos[0])
y = self._offset[1] + int(aPos[1])
self._writecommand(TFT.CASET) #Column address set.
self.windowLocData[0] = self._offset[0]
self.windowLocData[1] = x
self.windowLocData[2] = self._offset[0]
self.windowLocData[3] = x
self._writedata(self.windowLocData)
self._writecommand(TFT.RASET) #Row address set.
self.windowLocData[0] = self._offset[1]
self.windowLocData[1] = y
self.windowLocData[2] = self._offset[1]
self.windowLocData[3] = y
self._writedata(self.windowLocData)
self._writecommand(TFT.RAMWR) #Write to RAM.
# @micropython.native
def _setwindowloc( self, aPos0, aPos1 ) :
'''Set a rectangular area for drawing a color to.'''
self._writecommand(TFT.CASET) #Column address set.
self.windowLocData[0] = self._offset[0]
self.windowLocData[1] = self._offset[0] + int(aPos0[0])
self.windowLocData[2] = self._offset[0]
self.windowLocData[3] = self._offset[0] + int(aPos1[0])
self._writedata(self.windowLocData)
self._writecommand(TFT.RASET) #Row address set.
self.windowLocData[0] = self._offset[1]
self.windowLocData[1] = self._offset[1] + int(aPos0[1])
self.windowLocData[2] = self._offset[1]
self.windowLocData[3] = self._offset[1] + int(aPos1[1])
self._writedata(self.windowLocData)
self._writecommand(TFT.RAMWR) #Write to RAM.
#@micropython.native
def _writecommand( self, aCommand ) :
'''Write given command to the device.'''
self.dc(0)
self.cs(0)
self.spi.write(bytearray([aCommand]))
self.cs(1)
#@micropython.native
def _writedata( self, aData ) :
'''Write given data to the device. This may be
either a single int or a bytearray of values.'''
self.dc(1)
self.cs(0)
self.spi.write(aData)
self.cs(1)
#@micropython.native
def _pushcolor( self, aColor ) :
'''Push given color to the device.'''
self.colorData[0] = aColor >> 8
self.colorData[1] = aColor
self._writedata(self.colorData)
#@micropython.native
def _setMADCTL( self ) :
'''Set screen rotation and RGB/BGR format.'''
self._writecommand(TFT.MADCTL)
rgb = TFTRGB if self._rgb else TFTBGR
self._writedata(bytearray([TFTRotations[self.rotate] | rgb]))
#@micropython.native
def _reset( self ) :
'''Reset the device.'''
self.dc(0)
self.reset(1)
time.sleep_us(500)
self.reset(0)
time.sleep_us(500)
self.reset(1)
time.sleep_us(500)
def initb( self ) :
'''Initialize blue tab version.'''
self._size = (ScreenSize[0] + 2, ScreenSize[1] + 1)
self._reset()
self._writecommand(TFT.SWRESET) #Software reset.
time.sleep_us(50)
self._writecommand(TFT.SLPOUT) #out of sleep mode.
time.sleep_us(500)
data1 = bytearray(1)
self._writecommand(TFT.COLMOD) #Set color mode.
data1[0] = 0x05 #16 bit color.
self._writedata(data1)
time.sleep_us(10)
data3 = bytearray([0x00, 0x06, 0x03]) #fastest refresh, 6 lines front, 3 lines back.
self._writecommand(TFT.FRMCTR1) #Frame rate control.
self._writedata(data3)
time.sleep_us(10)
self._writecommand(TFT.MADCTL)
data1[0] = 0x08 #row address/col address, bottom to top refresh
self._writedata(data1)
data2 = bytearray(2)
self._writecommand(TFT.DISSET5) #Display settings
data2[0] = 0x15 #1 clock cycle nonoverlap, 2 cycle gate rise, 3 cycle oscil, equalize
data2[1] = 0x02 #fix on VTL
self._writedata(data2)
self._writecommand(TFT.INVCTR) #Display inversion control
data1[0] = 0x00 #Line inversion.
self._writedata(data1)
self._writecommand(TFT.PWCTR1) #Power control
data2[0] = 0x02 #GVDD = 4.7V
data2[1] = 0x70 #1.0uA
self._writedata(data2)
time.sleep_us(10)
self._writecommand(TFT.PWCTR2) #Power control
data1[0] = 0x05 #VGH = 14.7V, VGL = -7.35V
self._writedata(data1)
self._writecommand(TFT.PWCTR3) #Power control
data2[0] = 0x01 #Opamp current small
data2[1] = 0x02 #Boost frequency
self._writedata(data2)
self._writecommand(TFT.VMCTR1) #Power control
data2[0] = 0x3C #VCOMH = 4V
data2[1] = 0x38 #VCOML = -1.1V
self._writedata(data2)
time.sleep_us(10)
self._writecommand(TFT.PWCTR6) #Power control
data2[0] = 0x11
data2[1] = 0x15
self._writedata(data2)
#These different values don't seem to make a difference.
# dataGMCTRP = bytearray([0x0f, 0x1a, 0x0f, 0x18, 0x2f, 0x28, 0x20, 0x22, 0x1f,
# 0x1b, 0x23, 0x37, 0x00, 0x07, 0x02, 0x10])
dataGMCTRP = bytearray([0x02, 0x1c, 0x07, 0x12, 0x37, 0x32, 0x29, 0x2d, 0x29,
0x25, 0x2b, 0x39, 0x00, 0x01, 0x03, 0x10])
self._writecommand(TFT.GMCTRP1)
self._writedata(dataGMCTRP)
# dataGMCTRN = bytearray([0x0f, 0x1b, 0x0f, 0x17, 0x33, 0x2c, 0x29, 0x2e, 0x30,
# 0x30, 0x39, 0x3f, 0x00, 0x07, 0x03, 0x10])
dataGMCTRN = bytearray([0x03, 0x1d, 0x07, 0x06, 0x2e, 0x2c, 0x29, 0x2d, 0x2e,
0x2e, 0x37, 0x3f, 0x00, 0x00, 0x02, 0x10])
self._writecommand(TFT.GMCTRN1)
self._writedata(dataGMCTRN)
time.sleep_us(10)
self._writecommand(TFT.CASET) #Column address set.
self.windowLocData[0] = 0x00
self.windowLocData[1] = 2 #Start at column 2
self.windowLocData[2] = 0x00
self.windowLocData[3] = self._size[0] - 1
self._writedata(self.windowLocData)
self._writecommand(TFT.RASET) #Row address set.
self.windowLocData[1] = 1 #Start at row 2.
self.windowLocData[3] = self._size[1] - 1
self._writedata(self.windowLocData)
self._writecommand(TFT.NORON) #Normal display on.
time.sleep_us(10)
self._writecommand(TFT.RAMWR)
time.sleep_us(500)
self._writecommand(TFT.DISPON)
self.cs(1)
time.sleep_us(500)
def initr( self ) :
'''Initialize a red tab version.'''
self._reset()
self._writecommand(TFT.SWRESET) #Software reset.
time.sleep_us(150)
self._writecommand(TFT.SLPOUT) #out of sleep mode.
time.sleep_us(500)
data3 = bytearray([0x01, 0x2C, 0x2D]) #fastest refresh, 6 lines front, 3 lines back.
self._writecommand(TFT.FRMCTR1) #Frame rate control.
self._writedata(data3)
self._writecommand(TFT.FRMCTR2) #Frame rate control.
self._writedata(data3)
data6 = bytearray([0x01, 0x2c, 0x2d, 0x01, 0x2c, 0x2d])
self._writecommand(TFT.FRMCTR3) #Frame rate control.
self._writedata(data6)
time.sleep_us(10)
data1 = bytearray(1)
self._writecommand(TFT.INVCTR) #Display inversion control
data1[0] = 0x07 #Line inversion.
self._writedata(data1)
self._writecommand(TFT.PWCTR1) #Power control
data3[0] = 0xA2
data3[1] = 0x02
data3[2] = 0x84
self._writedata(data3)
self._writecommand(TFT.PWCTR2) #Power control
data1[0] = 0xC5 #VGH = 14.7V, VGL = -7.35V
self._writedata(data1)
data2 = bytearray(2)
self._writecommand(TFT.PWCTR3) #Power control
data2[0] = 0x0A #Opamp current small
data2[1] = 0x00 #Boost frequency
self._writedata(data2)
self._writecommand(TFT.PWCTR4) #Power control
data2[0] = 0x8A #Opamp current small
data2[1] = 0x2A #Boost frequency
self._writedata(data2)
self._writecommand(TFT.PWCTR5) #Power control
data2[0] = 0x8A #Opamp current small
data2[1] = 0xEE #Boost frequency
self._writedata(data2)
self._writecommand(TFT.VMCTR1) #Power control
data1[0] = 0x0E
self._writedata(data1)
self._writecommand(TFT.INVOFF)
self._writecommand(TFT.MADCTL) #Power control
data1[0] = 0xC8
self._writedata(data1)
self._writecommand(TFT.COLMOD)
data1[0] = 0x05
self._writedata(data1)
self._writecommand(TFT.CASET) #Column address set.
self.windowLocData[0] = 0x00
self.windowLocData[1] = 0x00
self.windowLocData[2] = 0x00
self.windowLocData[3] = self._size[0] - 1
self._writedata(self.windowLocData)
self._writecommand(TFT.RASET) #Row address set.
self.windowLocData[3] = self._size[1] - 1
self._writedata(self.windowLocData)
dataGMCTRP = bytearray([0x0f, 0x1a, 0x0f, 0x18, 0x2f, 0x28, 0x20, 0x22, 0x1f,
0x1b, 0x23, 0x37, 0x00, 0x07, 0x02, 0x10])
self._writecommand(TFT.GMCTRP1)
self._writedata(dataGMCTRP)
dataGMCTRN = bytearray([0x0f, 0x1b, 0x0f, 0x17, 0x33, 0x2c, 0x29, 0x2e, 0x30,
0x30, 0x39, 0x3f, 0x00, 0x07, 0x03, 0x10])
self._writecommand(TFT.GMCTRN1)
self._writedata(dataGMCTRN)
time.sleep_us(10)
self._writecommand(TFT.DISPON)
time.sleep_us(100)
self._writecommand(TFT.NORON) #Normal display on.
time.sleep_us(10)
self.cs(1)
def initb2( self ) :
'''Initialize another blue tab version.'''
self._size = (ScreenSize[0] + 2, ScreenSize[1] + 1)
self._offset[0] = 2
self._offset[1] = 1
self._reset()
self._writecommand(TFT.SWRESET) #Software reset.
time.sleep_us(50)
self._writecommand(TFT.SLPOUT) #out of sleep mode.
time.sleep_us(500)
data3 = bytearray([0x01, 0x2C, 0x2D]) #
self._writecommand(TFT.FRMCTR1) #Frame rate control.
self._writedata(data3)
time.sleep_us(10)
self._writecommand(TFT.FRMCTR2) #Frame rate control.
self._writedata(data3)
time.sleep_us(10)
self._writecommand(TFT.FRMCTR3) #Frame rate control.
self._writedata(data3)
time.sleep_us(10)
self._writecommand(TFT.INVCTR) #Display inversion control
data1 = bytearray(1) #
data1[0] = 0x07
self._writedata(data1)
self._writecommand(TFT.PWCTR1) #Power control
data3[0] = 0xA2 #
data3[1] = 0x02 #
data3[2] = 0x84 #
self._writedata(data3)
time.sleep_us(10)
self._writecommand(TFT.PWCTR2) #Power control
data1[0] = 0xC5 #
self._writedata(data1)
self._writecommand(TFT.PWCTR3) #Power control
data2 = bytearray(2)
data2[0] = 0x0A #
data2[1] = 0x00 #
self._writedata(data2)
self._writecommand(TFT.PWCTR4) #Power control
data2[0] = 0x8A #
data2[1] = 0x2A #
self._writedata(data2)
self._writecommand(TFT.PWCTR5) #Power control
data2[0] = 0x8A #
data2[1] = 0xEE #
self._writedata(data2)
self._writecommand(TFT.VMCTR1) #Power control
data1[0] = 0x0E #
self._writedata(data1)
time.sleep_us(10)
self._writecommand(TFT.MADCTL)
data1[0] = 0xC8 #row address/col address, bottom to top refresh
self._writedata(data1)
#These different values don't seem to make a difference.
# dataGMCTRP = bytearray([0x0f, 0x1a, 0x0f, 0x18, 0x2f, 0x28, 0x20, 0x22, 0x1f,
# 0x1b, 0x23, 0x37, 0x00, 0x07, 0x02, 0x10])
dataGMCTRP = bytearray([0x02, 0x1c, 0x07, 0x12, 0x37, 0x32, 0x29, 0x2d, 0x29,
0x25, 0x2b, 0x39, 0x00, 0x01, 0x03, 0x10])
self._writecommand(TFT.GMCTRP1)
self._writedata(dataGMCTRP)
# dataGMCTRN = bytearray([0x0f, 0x1b, 0x0f, 0x17, 0x33, 0x2c, 0x29, 0x2e, 0x30,
# 0x30, 0x39, 0x3f, 0x00, 0x07, 0x03, 0x10])
dataGMCTRN = bytearray([0x03, 0x1d, 0x07, 0x06, 0x2e, 0x2c, 0x29, 0x2d, 0x2e,
0x2e, 0x37, 0x3f, 0x00, 0x00, 0x02, 0x10])
self._writecommand(TFT.GMCTRN1)
self._writedata(dataGMCTRN)
time.sleep_us(10)
self._writecommand(TFT.CASET) #Column address set.
self.windowLocData[0] = 0x00
self.windowLocData[1] = 0x02 #Start at column 2
self.windowLocData[2] = 0x00
self.windowLocData[3] = self._size[0] - 1
self._writedata(self.windowLocData)
self._writecommand(TFT.RASET) #Row address set.
self.windowLocData[1] = 0x01 #Start at row 2.
self.windowLocData[3] = self._size[1] - 1
self._writedata(self.windowLocData)
data1 = bytearray(1)
self._writecommand(TFT.COLMOD) #Set color mode.
data1[0] = 0x05 #16 bit color.
self._writedata(data1)
time.sleep_us(10)
self._writecommand(TFT.NORON) #Normal display on.
time.sleep_us(10)
self._writecommand(TFT.RAMWR)
time.sleep_us(500)
self._writecommand(TFT.DISPON)
self.cs(1)
time.sleep_us(500)
#@micropython.native
def initg( self ) :
'''Initialize a green tab version.'''
self._reset()
self._writecommand(TFT.SWRESET) #Software reset.
time.sleep_us(150)
self._writecommand(TFT.SLPOUT) #out of sleep mode.
time.sleep_us(255)
data3 = bytearray([0x01, 0x2C, 0x2D]) #fastest refresh, 6 lines front, 3 lines back.
self._writecommand(TFT.FRMCTR1) #Frame rate control.
self._writedata(data3)
self._writecommand(TFT.FRMCTR2) #Frame rate control.
self._writedata(data3)
data6 = bytearray([0x01, 0x2c, 0x2d, 0x01, 0x2c, 0x2d])
self._writecommand(TFT.FRMCTR3) #Frame rate control.
self._writedata(data6)
time.sleep_us(10)
self._writecommand(TFT.INVCTR) #Display inversion control
self._writedata(bytearray([0x07]))
self._writecommand(TFT.PWCTR1) #Power control
data3[0] = 0xA2
data3[1] = 0x02
data3[2] = 0x84
self._writedata(data3)
self._writecommand(TFT.PWCTR2) #Power control
self._writedata(bytearray([0xC5]))
data2 = bytearray(2)
self._writecommand(TFT.PWCTR3) #Power control
data2[0] = 0x0A #Opamp current small
data2[1] = 0x00 #Boost frequency
self._writedata(data2)
self._writecommand(TFT.PWCTR4) #Power control
data2[0] = 0x8A #Opamp current small
data2[1] = 0x2A #Boost frequency
self._writedata(data2)
self._writecommand(TFT.PWCTR5) #Power control
data2[0] = 0x8A #Opamp current small
data2[1] = 0xEE #Boost frequency
self._writedata(data2)
self._writecommand(TFT.VMCTR1) #Power control
self._writedata(bytearray([0x0E]))
self._writecommand(TFT.INVOFF)
self._setMADCTL()
self._writecommand(TFT.COLMOD)
self._writedata(bytearray([0x05]))
self._writecommand(TFT.CASET) #Column address set.
self.windowLocData[0] = 0x00
self.windowLocData[1] = 0x01 #Start at row/column 1.
self.windowLocData[2] = 0x00
self.windowLocData[3] = self._size[0] - 1
self._writedata(self.windowLocData)
self._writecommand(TFT.RASET) #Row address set.
self.windowLocData[3] = self._size[1] - 1
self._writedata(self.windowLocData)
dataGMCTRP = bytearray([0x02, 0x1c, 0x07, 0x12, 0x37, 0x32, 0x29, 0x2d, 0x29,
0x25, 0x2b, 0x39, 0x00, 0x01, 0x03, 0x10])
self._writecommand(TFT.GMCTRP1)
self._writedata(dataGMCTRP)
dataGMCTRN = bytearray([0x03, 0x1d, 0x07, 0x06, 0x2e, 0x2c, 0x29, 0x2d, 0x2e,
0x2e, 0x37, 0x3f, 0x00, 0x00, 0x02, 0x10])
self._writecommand(TFT.GMCTRN1)
self._writedata(dataGMCTRN)
self._writecommand(TFT.NORON) #Normal display on.
time.sleep_us(10)
self._writecommand(TFT.DISPON)
time.sleep_us(100)
self.cs(1)
def maker( ) :
t = TFT(1, "X1", "X2")
print("Initializing")
t.initr()
t.fill(0)
return t
def makeb( ) :
t = TFT(1, "X1", "X2")
print("Initializing")
t.initb()
t.fill(0)
return t
def makeg( ) :
t = TFT(1, "X1", "X2")
print("Initializing")
t.initg()
t.fill(0)
return t
Я бы не обращался на форум без предварительного поиска в гугле. Я так понимаю основная проблема в том что не установлена нужная библиотека. Я пробовал через Manage packages установить, ошибка. Я пробовал закидывать в папку lib файлы с githab, не работает. Сейчас я смотрю видос на индийском и пытаюсь разобраться в элементарной задачи. С chatgpt я делал гораздо сложнее вещи с обычным пайтоном.
По крайней мере ошибку не выдает, что радует. Но на дисплее ничего нету
ну дак ему и пиши.
2 лайка
Так я ему и писал не однократно, дисплей так и не заработал в Thony выдает ошибку.
По ссылке было про ChatGPT и лингвистические модели. Вкратце он НЕ решает технические задачи. Он строит ответ так, чтобы это было максимально похоже на техническое решение задачи. Иногда это может работать, но далеко не всегда. При должном понимании, иногда достаточно небольшого редактирования чтобы заработало, а иногда это просто бред на заданную тему.
3 лайка
Я понимаю, я его упомянул только по тому что он нормально работал с обычным пайтоном, в этой ситуации он не смог помочь
Для пайтона больше примеров в сети, больше откуда можно надергать работающего кода.
Спасибо конечно за пояснение, но проблему это не решает. Я не требую ничего, я обращаюсь к тем у кого есть желание помочь. Конечно я не думал что мне придётся обратиться за помощью форума в такой базовой вещи.
номера пинов поправил?
Честно пытался понять где в коде номера пинов, так и не разобрался
6 и 7 строка
Тогда, может, следует начинать с чтения учебников?
Похоже, Вы обратились не по адресу.
Здесь помогают только тем, кто сам что-то делает.
У Вас есть еще вариант обратится в платный раздел форума “Ищу исполнителя”.
Чат ГоПоТа и программирование, это как гопота на улице !!!
Что бы что то заработало надо правильно подключить и в скетче правильно указать что и куда вы подключили.
Из спича ТС я понял только что он заливает что то в плату pico, а дисплей, лежащий в коробочке в соседней комнате, ничего не отображает …

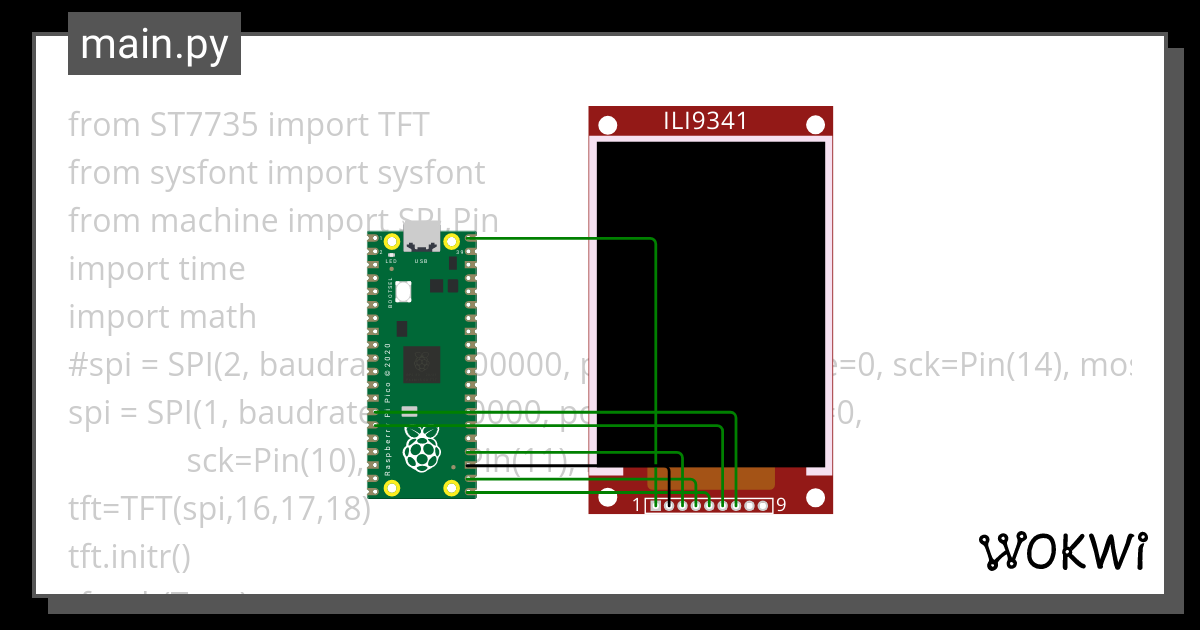

Вывод на дисплей начинается после первой секунды и в Wokwi не нашел чистого st7735 - по этому использовал ili9341 (протокол у них идентичный, а вот размер другой = вывод не на весь экран и с ориентацией беда - разбираться не стал) …
2 лайка
Перекинул на raspberry pi pico st7735 и в корень и в папку lib.
Пытаюсь вывести на дисплей текст кодом:
import machine
from machine import Pin, SPI
import st7735
# Установите соответствующие пины для подключения дисплея
scl = Pin(2)
sda = Pin(3)
res = Pin(12)
dc = Pin(13)
cs = Pin(14)
blk = Pin(15)
# Инициализация SPI
spi = SPI(0, baudrate=20000000, polarity=0, phase=0, sck=scl, mosi=sda, miso=None)
# Инициализация дисплея
display = st7735.ST7735(spi, res=res, dc=dc, cs=cs, backlight=blk)
# Инициализация дисплея
display.init()
# Установка цвета фона и переднего плана
display.fill(st7735.BLACK)
display.text('Hello', 10, 10, st7735.WHITE, sysfont)
# Отображение текста на дисплее
display.show()
Выдает ошибку:
MPY: soft reboot
Traceback (most recent call last):
File "<stdin>", line 17, in
AttributeError: ‘module’ object has no attribute ‘ST7735’
В 17 строке разберитесь что не так может ST7735 надо изменить на st7735…или как там в модуле прописано …
